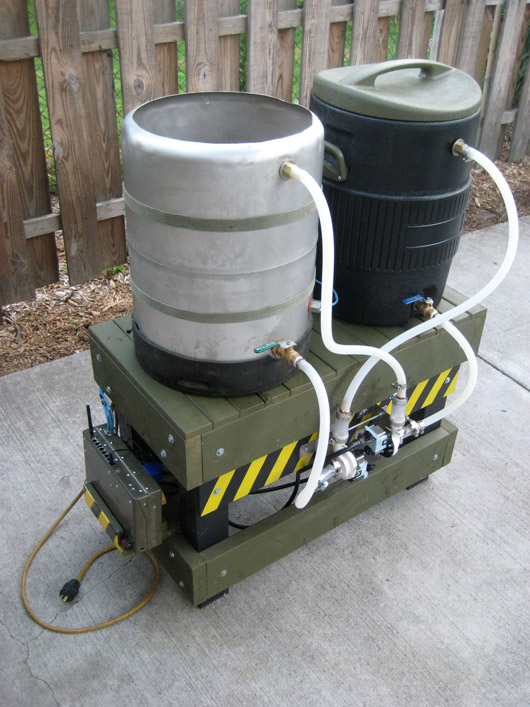

JunkTrunk Brewery Automation

Posted on 2010-07-30, tagged Brewing Beer Arduino IOT

Update 3/20/11: Added build photo gallery

Powered By

• HABS - which has been modified to be controlled remotely via web interface
• JeeNode (RF enabled Arduino)
• Recycled 1/2 barrel keg
• 10 gallon Igloo cooler
• (2) Dishwasher Drain Pumps - WD26X10037 via Klenks
• (2) DS18B20 temp probes - Digikey
• High temp checkfloat - McMaster Carr 46515k41
• '65 Ford Falcon windshield wiper motor (not pictured)
• (3) cans of olive drab spray paint
• Lots of visits to Home Depot, Lowes, and Radio Shack

Links and Files

• Halfluck Automated Brewing System
• Pump bracket pattern (pdf)
• JeeLabs - RF arduino boards
• Arduino
• Heating element installation
• Wiring GFCI Receptacles - scroll down to the "Wiring GFCI Receptacles" section to protect multiple outlets under one gfci.

*Disclaimer: This project involves having electricity and water in close proximity. It is dangerous and potentially life threatening. If you're unsure of your skills, contact an electrician.
